Kubelet Debugging Session

Introduction

This post reflects some work on setting up a development environment for Kubernetes. We must have Goland, Virtualbox, Delve and MacOS installed. If you're using Linux probably the vm part is not necessary.

Installing the tools

VirtualBox

Since we are on MacOSX, and Kubelet nodes works only on Linux and Windows the setup of a vm is necessary for this step a Debian Buster image is going to be used, the Virtualbox is 6.1.6 with additions.

Vagrantfile

Starting with the Vagrantfile we are going to use both forwarded ports and synced folder functionalities.

 Vagrant.configure("2") do |config|
   config.vm.box = "debian/buster64"
   config.vm.network "forwarded_port", guest: 2456, host: 2456
   config.vm.synced_folder "/Users/<user>/go/src", "/home/vagrant/go/src/"
 end

Port 2456 will be used by Delve to make it available outside the host. First is necessary to run the upgrade of linux-headers, to start guest additions for this image.

 apt-get upgrade
 sudo apt upgrade linux-headers-amd64
 sudo apt-get install -y linux-headers-$(uname -r) curl

Golang

Gimme is a good option to move around Go versions, using 1.13.10

curl -sL -o ~/bin/gimme https://raw.githubusercontent.com/travis-ci/gimme/master/gimme; chmod +x ~/bin/gimme
export PATH=${PATH}:/home/vagrant/bin
eval "$(GIMME_GO_VERSION=1.13.10 gimme)"

Kubernetes source code

mkdir -p $GOPATH/src/k8s.io
cd $GOPATH/src/k8s.io
git clone https://github.com/kubernetes/kubernetes
cd kubernetes

Starting with Kubelet we should be able to build it

vagrant@buster:~/go/src/k8s.io/kubernetes$ make clean; make WHAT=cmd/kubelet
+++ [0511 22:15:55] Building go targets for linux/amd64:
    cmd/kubelet

Testing with coverage

So far so good, it's even possible to generate some HTML coverage reporting here

vagrant@buster:~/go/src/k8s.io/kubernetes$ make test WHAT=./pkg/kubelet KUBE_COVER=y
+++ [0512 00:28:11] Saving coverage output in '/tmp/k8s_coverage/20200512-002811'
ok  	k8s.io/kubernetes/pkg/kubelet	9.967s	coverage: 52.8% of statements
vagrant@buster:~/go/src/k8s.io/kubernetes$ sudo mv /tmp/k8s_coverage/20200512-002811/combined-coverage.html ~/go/src/


Installing Kubernetes

Kubeadm

Follows the Kubeadm guide for Debian installation (you need docker installed)

sudo apt-get update && sudo apt-get install -y apt-transport-https curl
curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo apt-key add -
cat <<EOF | sudo tee /etc/apt/sources.list.d/kubernetes.list
deb https://apt.kubernetes.io/ kubernetes-xenial main
EOF
sudo apt-get update
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl

Initialize the Kubeadm init, untaint the node and install the CNI

kubeadm init --apiserver-advertise-address=10.0.2.15
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
vagrant@buster:~/go/src/k8s.io/kubernetes$ kubectl get pods
No resources found in default namespace.

https://kubernetes.io/docs/setup/production-environment/tools/kubeadm/install-kubeadm/

Kind

As a second options it's possible to use Kind instead of running it directly from Kubeadm, and let Kubelet to join an already existent cluster, after creating a cluster you can fetch all the data to externally access it:

$ kind create cluster
Creating cluster "kind" ...
 ✓ Ensuring node image (kindest/node:v1.18.2) 🖼
 ✓ Preparing nodes 📦
...

$ docker exec -it kind-control-plane sh
root@kind-control-plane:/# kubeadm token create
97ihyk.ytx08cps3hbn1c6e

$ openssl x509 -pubkey -in /etc/kubernetes/pki/ca.crt | openssl rsa -pubin -outform 2>/dev/null |openssl dgst -sha256 -hex | cut -d" " -f2
e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855

$ kubectl -n kube-system get cm kubeadm-config -o json | jq ".data.ClusterStatus"
"apiEndpoints:\n  kind-control-plane:\n    advertiseAddress: 172.18.0.2\n    bindPort: 6443\napiVersion: kubeadm.k8s.io/v1beta2\nkind: ClusterStatus\n"

$ echo "172.18.0.2     kind-control-plane" >> /etc/hosts

Instead of initing the Kubeadm directly, you should use join like:

root@buster:/home/vagrant# kubeadm join --token 97ihyk.ytx08cps3hbn1c6e kind-control-plane:6443 --discovery-token-ca-cert-hash sha256:e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855
W0512 18:00:22.629925   11660 join.go:346] [preflight] WARNING: JoinControlPane.controlPlane settings will be ignored when control-plane flag is not set.
...
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.18" ConfigMap in the kube-syst

Check the external node has connectivity with your cluster.

root@buster:/home/vagrant# kubeadm join --token 97ihyk.ytx08cps3hbn1c6e kind-control-plane:6443 --discovery-token-ca-cert-hash sha256:e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855
root@buster:/home/vagrant# kubectl get nodes
NAME                 STATUS   ROLES    AGE   VERSION
buster               Ready    <none>   80s   v1.18.2
kind-control-plane   Ready    master   20m   v1.18.2

Goland environment

Stopping Kubelet

The kubelet should be running via systemd you can follow with journalctl -flu kubelet. Copy the flags used to setup it, this is going to be used later.

/usr/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf \
--kubeconfig=/etc/kubernetes/kubelet.conf --config=/var/lib/kubelet/config.yaml \
--cgroup-driver=cgroupfs --network-plugin=cni --pod-infra-container-image=k8s.gcr.io/pause:3.2

We should stop it with systemctl stop kubelet.

Running compiled Kubelet with Delve

Get delve and rerun the Kubelet recompiling with delve debug.

vagrant@buster:~/go/src/k8s.io/kubernetes$ go get github.com/go-delve/delve/cmd/dlv
vagrant@buster:~/go/src/k8s.io/kubernetes$ dlv debug ./cmd/kubelet --headless --listen=:2456 --api-version=2

Finally you should be able to connect in the listening port.

Opening on Goland

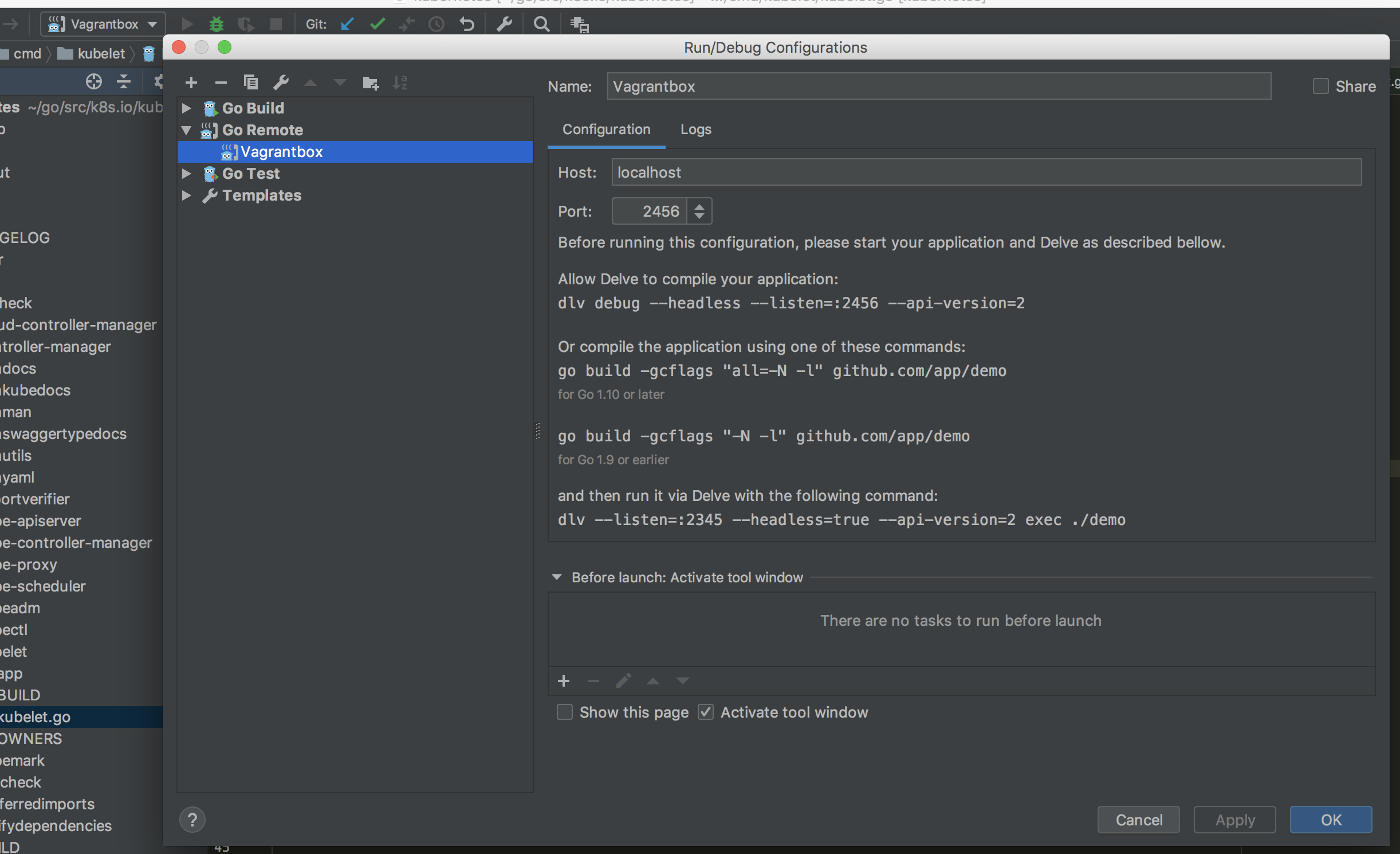

Configure Goland to debug the host:

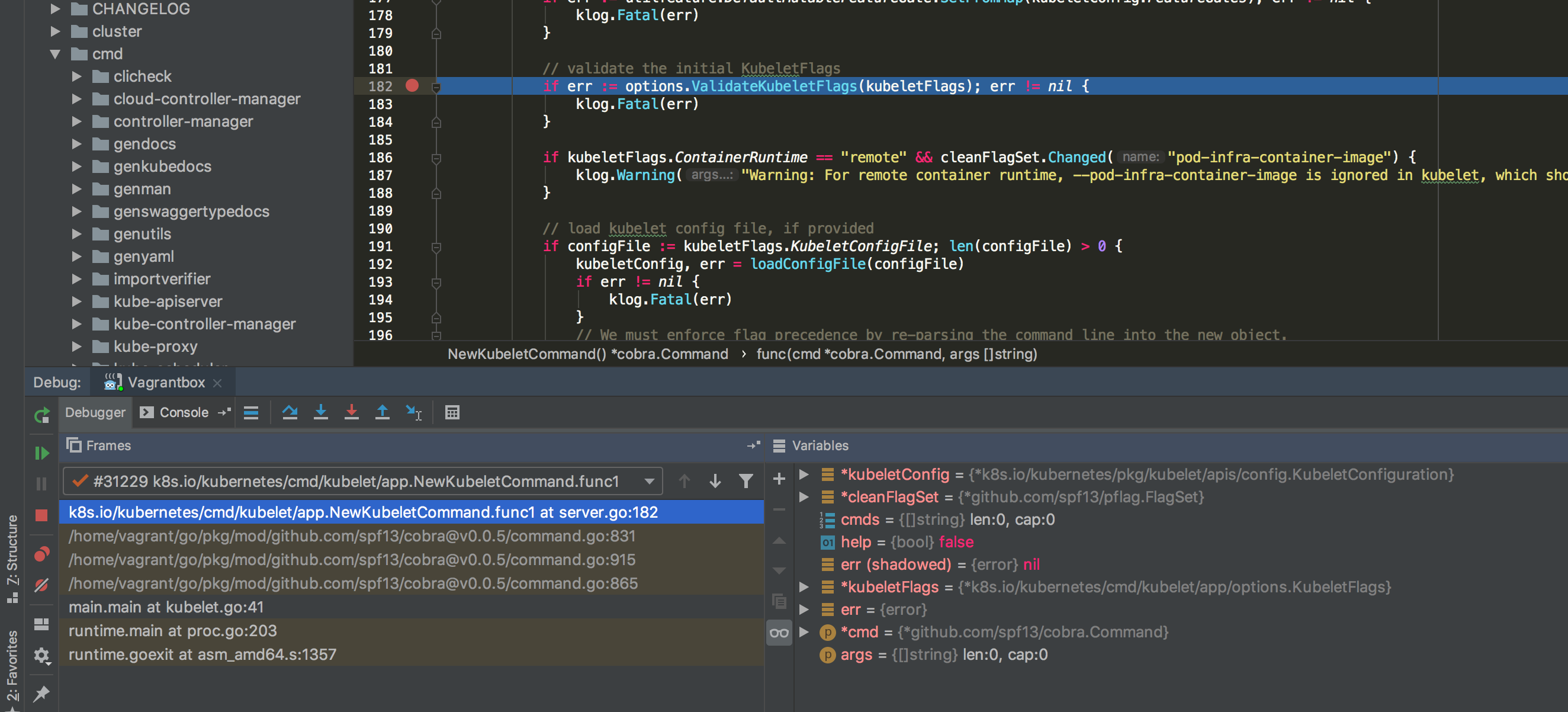

It's possible now to debug the code normally, just use the project from the mounted folder with the actual source code.


References

@maulion on TGIK 109
