Kubectl Walkthrough

Introduction

This is swiss-knife of the Kubernetes operator, the kubectl is a tools for translating declarative resources in Kubernetes objects via the API, so the operator can load, remove or update workloads, configurations and more.

The main source of truth is the Kubectl book but this post will try to summarize and organize the main capabilities of the tool.

Kubectl debugging and API server

Kubectl is a client for the master API server, you can confirm this fact settings the verbose to 8, and you can fetch both the request and the response.

kubectl run nginx8 --image=nginx -v=8 --generator=run-pod/v1

I1226 12:59:46.868834   22924 loader.go:375] Config loaded from file:  /Users/amimknabben/.kube/config
I1226 12:59:46.878441   22924 request.go:968] Request Body:

{
  "kind": "Pod",
  "apiVersion": "v1",
  "metadata": {
    "name": "nginx8",
    "creationTimestamp": null,
    "labels": {
      "run": "nginx8"
    }
  },
  "spec": {
    "containers": [
      {
        "name": "nginx8",
        "image": "nginx",
        "resources": {}
      }
    ],
    "restartPolicy": "Always",
    "dnsPolicy": "ClusterFirst"
  },
  "status": {}
}
I1226 12:59:46.878511   22924 round_trippers.go:420] POST https://127.0.0.1:64462/api/v1/namespaces/default/pods
I1226 12:59:46.878519   22924 round_trippers.go:427] Request Headers:
I1226 12:59:46.878525   22924 round_trippers.go:431]     Content-Type: application/json
I1226 12:59:46.878530   22924 round_trippers.go:431]     Accept: application/json, */*
I1226 12:59:46.878535   22924 round_trippers.go:431]     User-Agent: kubectl/v1.16.2 (darwin/amd64) kubernetes/c97fe50
I1226 12:59:47.074562   22924 round_trippers.go:446] Response Status: 201 Created in 196 milliseconds
I1226 12:59:47.074584   22924 round_trippers.go:449] Response Headers:
I1226 12:59:47.074596   22924 round_trippers.go:452]     Cache-Control: no-cache, private
I1226 12:59:47.074602   22924 round_trippers.go:452]     Content-Type: application/json
I1226 12:59:47.074607   22924 round_trippers.go:452]     Content-Length: 1209
I1226 12:59:47.074612   22924 round_trippers.go:452]     Date: Thu, 26 Dec 2019 17:59:47 GMT
I1226 12:59:47.077981   22924 request.go:968] Response Body: {"kind":"Pod","apiVersion":"v1","metadata":{"name":"nginx8","namespace":"default","selfLink":"/api/v1/namespaces/default/pods/nginx8","uid":"414b0331-b3e2-41ee-8b65-ca8edf10cbbd"...

Resources are Kubernetes objects, and their configuration is applied (declarative Create/Update/Delette) to a Kubernetes cluster using tools such as kubectl, stored in an ETCd and then actuated by a controller. The documetation is available.

These basic types systems are defined by API machinery by Kinds (they are divided into API groups and versions). They are know as GVK (GroupVersionKind), these Kind objects are mapped to real golang types.

In the other side we have resources, they identify a set of HTTTP endpoints exposing the CRUD semantics of a certain object type, the GVRs. Long story short, GVKs are served under HTTP paths identified by GVRs, and this process of mapping GVKs to GVRs is called REST mapping.

The resources are identified by the following fields:

  1. apiVersion
  2. kind
  3. metadata
  • namespace (instance namespace)
  • name (instance name)

Resources also have TypeMeta, ObjectMeta, Spec (the desired state) and Status (the observed state)

For more information on the inner working: Life of a Kubernetes API Request by Daniel Smith, Google

Kubectl command operations

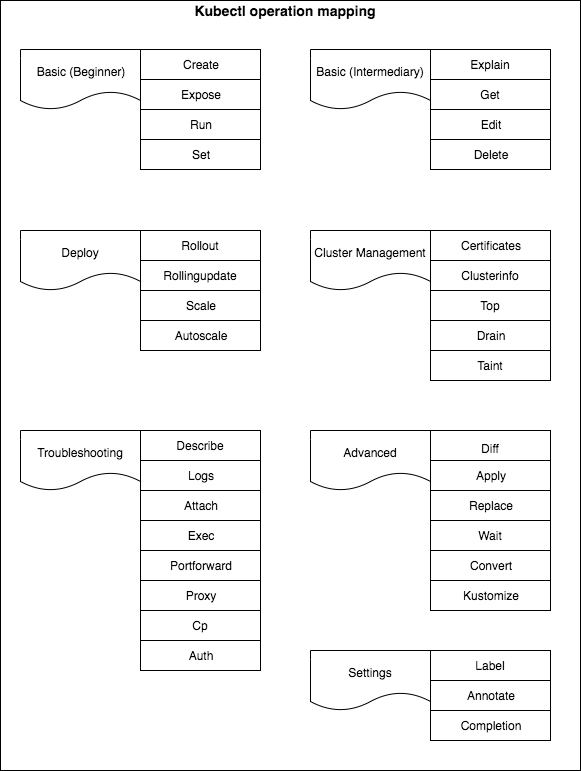

We can see the grouping of commands here:

Settings, cluster and deploy commands are going to be checked further.

	groups := templates.CommandGroups{
		{
			Message: "Basic Commands (Beginner):",
			Commands: []*cobra.Command{
				create.NewCmdCreate(f, ioStreams),
				expose.NewCmdExposeService(f, ioStreams),
				run.NewCmdRun(f, ioStreams),
				set.NewCmdSet(f, ioStreams),
			},
		},
		{
			Message: "Basic Commands (Intermediate):",
			Commands: []*cobra.Command{
				explain.NewCmdExplain("kubectl", f, ioStreams),
				get.NewCmdGet("kubectl", f, ioStreams),
				edit.NewCmdEdit(f, ioStreams),
				delete.NewCmdDelete(f, ioStreams),
			},
		},
		{
			Message: "Deploy Commands:",
			Commands: []*cobra.Command{
				rollout.NewCmdRollout(f, ioStreams),
				rollingupdate.NewCmdRollingUpdate(f, ioStreams),
				scale.NewCmdScale(f, ioStreams),
				autoscale.NewCmdAutoscale(f, ioStreams),
			},
		},
		{
			Message: "Cluster Management Commands:",
			Commands: []*cobra.Command{
				certificates.NewCmdCertificate(f, ioStreams),
				clusterinfo.NewCmdClusterInfo(f, ioStreams),
				top.NewCmdTop(f, ioStreams),
				drain.NewCmdCordon(f, ioStreams),
				drain.NewCmdUncordon(f, ioStreams),
				drain.NewCmdDrain(f, ioStreams),
				taint.NewCmdTaint(f, ioStreams),
			},
		},
		{
			Message: "Troubleshooting and Debugging Commands:",
			Commands: []*cobra.Command{
				describe.NewCmdDescribe("kubectl", f, ioStreams),
				logs.NewCmdLogs(f, ioStreams),
				attach.NewCmdAttach(f, ioStreams),
				cmdexec.NewCmdExec(f, ioStreams),
				portforward.NewCmdPortForward(f, ioStreams),
				proxy.NewCmdProxy(f, ioStreams),
				cp.NewCmdCp(f, ioStreams),
				auth.NewCmdAuth(f, ioStreams),
			},
		},
		{
			Message: "Advanced Commands:",
			Commands: []*cobra.Command{
				diff.NewCmdDiff(f, ioStreams),
				apply.NewCmdApply("kubectl", f, ioStreams),
				patch.NewCmdPatch(f, ioStreams),
				replace.NewCmdReplace(f, ioStreams),
				wait.NewCmdWait(f, ioStreams),
				convert.NewCmdConvert(f, ioStreams),
				kustomize.NewCmdKustomize(ioStreams),
			},
		},
		{
			Message: "Settings Commands:",
			Commands: []*cobra.Command{
				label.NewCmdLabel(f, ioStreams),
				annotate.NewCmdAnnotate("kubectl", f, ioStreams),
				completion.NewCmdCompletion(ioStreams.Out, ""),
			},
		},


Tips

JSONPath vs jq

Besides Jq (a sed like tools but for JSON data) being a very useful one, Kubectl comes with JSONPath cababilities (Like XPath but for JSON).

# Show the kind of all namespace deployments
kubectl get deployment -o=jsonpath='{.items[*].kind}{"\n"}'
Deplyoment
Deplyoment

# Iterate then name of all deployments and pipe to a delete command
kubectl get deployment.v1.apps -o=jsonpath='{range .items[*]}{.metadata.name}{"\n"}{end}' | xargs kubectl delete deployment
deployment.apps "nginx" deleted
deployment.apps "nginx2" deleted

Basic Explain and resources

You can list the available resources with api-resources and get the documentation with explain:

$ kubectl api-resources

NAME                              SHORTNAMES   APIGROUP                       NAMESPACED   KIND
...
customresourcedefinitions         crd,crds     apiextensions.k8s.io           false        CustomResourceDefinition
...

---

$ kubectl explain crd
KIND:     CustomResourceDefinition
VERSION:  apiextensions.k8s.io/v1

DESCRIPTION:
     CustomResourceDefinition represents a resource that should be exposed on
     the API server. Its name MUST be in the format <.spec.name>.<.spec.group>.

FIELDS:
   apiVersion   <string>
     APIVersion defines the versioned schema of this representation of an
     object. Servers should convert recognized schemas to the latest internal
     value, and may reject unrecognized values. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources

   kind <string>
     Kind is a string value representing the REST resource this object
     represents. Servers may infer this from the endpoint the client submits
     requests to. Cannot be updated. In CamelCase. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds

   metadata     <Object>

   spec <Object> -required-
     spec describes how the user wants the resources to appear

   status       <Object>
     status indicates the actual state of the CustomResourceDefinition

Bash autocomplete

source <(kubectl completion zsh|bash)

Documentation

The autogenerated documentation can be found here.
